Product Details
Color
Black
Conductors
Three Conductor
Amps
3@30
Volts
1500
Advantages
Durable,Compact,Low Cost,Signal And/or Power Connections
Conductors: Three Conductor
Amps: 3@30
Volts: 1500

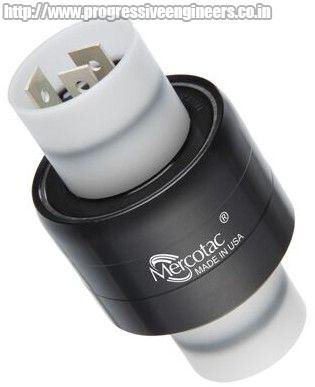

The Mercotac® model 335 brushless slip rings are a great match for higher power applications such as electrical heating systems where electrical power is needed to transmit from a stationary power source to the rotating heating parts such as coils that are mounted to a shaft.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- IP 51 protection rating with boot kit
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
Specification
| Model No. | Terminals | Body Material | Bearing Type | Max. Rotational Torque (gf-cm) |
Max. Voltage Rating (AC/DC) |
Max. Current Rating (Amps) |
Max. Rotational Speed (RPM) |
Operating Temp. Min °F (°C) Max °F (°C) |
Max. Frequency (MHz) | Contact Resistance (mΩ) |
Circuit Separation (MΩ) |
| 335 | 3 | Anodized Aluminum | Chrome Steel | 700 | 500 | 30 | 500 | Min -20 (-29) Max 140 (60) |
100 | <1 | >50 |
| 335-SS | Stainless Steel |
