100 Piece (MOQ)
| Business Type | Supplier, Retailer |
| Brand Name | Mercotac |
| Color | Black |
| Type | Slip Ring |
| Click to view more | |
Product Details
Application
Crane Booms, Lights, Sensors, Cameras, Extension, Retraction
Conductors
Three Conductor
Amps
3@30
Volts
250
Conductors: Three Conductor
Amps: 3@30
Volts: 250

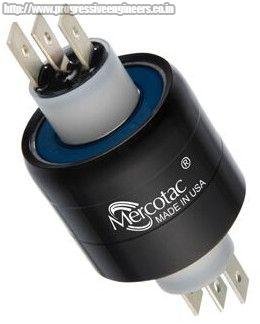

The Mercotac® model 330 brushless slip rings are an excellent solution for a variety of applications. One example is in crane booms, where they enable the continuous transmission of power, control signals, and data between the base and rotating boom. These units can also support components like lights, sensors, and cameras, as well as extension, retraction, and rotation functions.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- IP 51 protection rating with boot kit
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
Specification
| Model No. | Terminals | Body Material | Bearing Type | Max. Rotational Torque (gf-cm) |
Max. Voltage Rating (AC/DC) |
Max. Current Rating (Amps) |
Max. Rotational Speed (RPM) |
Operating Temp. Min °F (°C) Max °F (°C) |
Max. Frequency (MHz) | Contact Resistance (mΩ) |
Circuit Separation (MΩ) |
| 330 | 3 | Anodized Aluminum | Chrome Steel | 300 | 250 | 30 | 1200 | Min -20 (-29) Max 140 (60) |
100 | <1 | >25 |
| 330-SS | Stainless Steel |
