Mercotac Connectors
Leading Wholesaler, Distributor and Trader of Three Conductor Brushless Slip Rings, One Conductor Brushless Slip Rings, Two Conductor Brushless Slip Rings, Four Conductor Brushless Slip Rings and Six+ Conductor Brushless Slip Rings from Ahmedabad.
| Business Type | Supplier, Retailer |
| Type | Slip Ring |
| Application | Wind Turbines |
| Driven Type | Electric |
| Color | Black |
| Conductors | Three Conductor |
| Amps | 4 |
| Volts | 250 |
| Advantages | Durable,Compact,Low Cost,Signal And/or Power Connections |
Conductors: Three Conductor
Amps: 4
Volts: 250

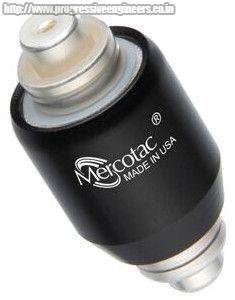

The Mercotac® model 305 brushless slip rings are frequently used in wind turbines to transmit power, data, and control signals between the stationary and rotating parts. This enables efficient operation and control of the turbine.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
| Business Type | Supplier, Retailer |
| Type | Brushless Slip Ring |
| Application | Plating, Grounding, Static Charge, Microelectronics, Moisture Sensing |
| Model Number | 110 |
| Current Rating | Up To 10A |
| Mounting Position | Bottom Of A Vertical Rotating Shaft |
| Mounting Type | Threaded Stud Mount Or Connection |
| Advantages | Durable, Compact, Low Cost,Use For Signal And/or Power Connections,Easy To Install And Replace,Lightweight With Robust Metal Construction,Long-lasting, Energy Efficient, No Maintenance,Made In The USA |
The Mercotac® model 110 brushless slip ring is designed for up to 10A applications where a single channel is needed. The Mercotac model 104 while having a lower current rating is designed for higher RPM applications. These models are intended to be mounted at the bottom of a vertical rotating shaft or wherever a threaded stud mount or connection is required. Commonly used in plating, grounding, and static charge applications they are also suitable for microelectronics, moisture sensing, wire metal fatigue testing, and more.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
| Business Type | Supplier, Retailer |
| Brand Name | Mercotac |
| Type | Slip Ring |
| Conductors | Two Conductor |
| Amps | 4 |
| Ideal For | Thermocouples,Strain Gages,Eddy Current Test Devices |
| Advantages | Durable,Compact,Low Cost,Signal And/or Power Connections, |
Conductors: Two Conductor
Amps: 4

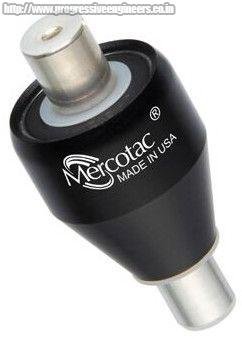

The Mercotac® model 205 brushless slip rings are ideal for thermocouples, strain gages, eddy current test devices, and wind turbine blade sensors due to their compact size, reliable quality signal connection, low torque and low cost. The model 205 replaced the model 590, which was the pioneering brushless slip ring designed specifically for the Leslie Organ Speaker.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
| Business Type | Supplier, Retailer |
| Application | Robotics,Medical Equipment,Packaging Machinery |
| Material | Metal |
| Country of Origin | USA |
| Conductors | Four Conductor |
| Amps | 2@4A And 2@30A |
| Volts | 250 |
| Ideal For | Heated Roller Applications |
| Advantages | Durable,Compact,Low Cost,Easy To Install,IP 51 Protection Rating |
| Protection Rating | IP 51 |
| Dimensions | Compact |
Conductors: Four Conductor
Amps: 2@4A and 2@30A
Volts: 250

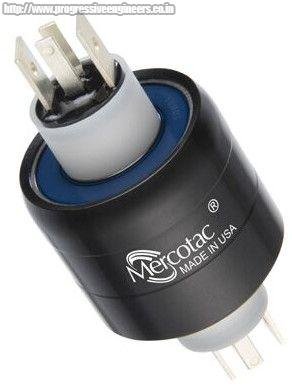

The Mercotac® model 430 is ideal for heated roller applications that need both a connection to sensitive thermocouple signals and for powering the heating elements. It's also a great choice for compact, low-cost, and reliable slip rings that can handle both signal and power connections in robotics, medical equipment, or packaging machinery.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- IP 51 protection rating with boot kit
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
| Business Type | Supplier, Retailer |
| Application | Robotic Arms, Semiconductor Equipment, Rotary Tables, Wind Turbines |
| Material | Metal |
| Country of Origin | USA |
| Conductors | Six Conductor |
| Amps | 2@4 Amps, 4@30 Amps |
| Volts | 250 Volts |
| Advantages | Durable, Compact, Low Cost,Signal And/or Power Connections, |
| Protection Rating | IP 51 |
Conductors: Six Conductor
Amps: 2@4 Amps, 4@30 Amps
Volts: 250

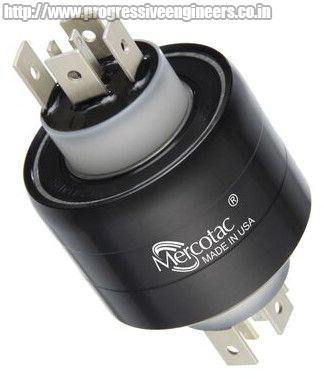

The Mercotac® model 630 brushless slip rings ensure a reliable transmission of electrical power, control signals, and data between stationary and rotating components. Specifically designed for various applications such as robotic arms, semiconductor equipment, rotary tables, wind turbines, and robotics, these slip rings ensure secure and dependable operation even in challenging environments. Highly versatile and reliable, they are essential for industries that require robust electrical rotary connections.
Advantages:
- Durable, compact, and low cost
- Use for signal and/or power connections
- Easy to install and replace
- IP 51 protection rating with boot kit
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
