100 Piece (MOQ)
| Business Type | Manufacturer, Supplier |
| Material | Stainless Steel |
| Type | Brushless |
| Application | Plating Electrodes, Welding Cable Reels |
| Click to view more | |
Product Details
Color
Metallic
Conductors
One Conductor
Amps
500
Advantages
Durable,Compact,Dependable Electrical Connection,Easy To Install And Replace
Protection Rating
IP51
Housing Material
Stainless Steel
Conductors: One Conductor
Amps: 500

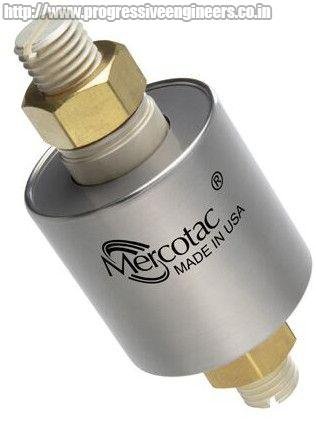

The Mercotac® model 1500 series brushless slip rings are specifically designed to meet the demands of high-power applications, making them the ideal choice for plating electrodes and welding cable reels. These slip rings feature a durable stainless steel housing as a standard feature, providing enhanced protection and durability in demanding environments.
Advantages:
- Durable, compact, and low cost
- Dependable electrical connection
- Easy to install and replace
- IP 51 protection rating with boot kit
- Lightweight with robust metal construction
- Long-lasting, energy efficient, and no maintenance
- Made in the USA
Specification
| Model No. | Terminals | Body Material | Bearing Type | Max. Rotational Torque (gf-cm) |
Max. Voltage Rating (AC/DC) |
Max. Current Rating (Amps) |
Max. Rotational Speed (RPM) |
Operating Temp. Min °F (°C) Max °F (°C) |
Max. Frequency (MHz) | Contact Resistance (mΩ) |
Circuit Separation (MΩ) |
| 1500 | 1 | Stainless Steel | Chrome Steel | 750 | N/A | 500 | 300 | Min -20 (-29) Max 140 (60) |
200 | <1 | N/A |
| 1500-SS | Stainless Steel | ||||||||||
| 1500-1 | Chrome Steel | ||||||||||
| 1500-1-SS | Stainless Steel |
