Soldering Supplies
Leading Wholesaler, Distributor and Trader of Flux Pens, Flux Removers, Solder Mask, Solder Pastes and Soldering Flux from Ahmedabad.
| Business Type | Supplier, Retailer |
| Bullet Tip Width | 1-1.5mm |
| Body Material | Rosin-based Liquid Flux With Moderate Activity, Water White (WW) Grade Gum Rosin, Activators |
| Application | Soldering |
| Type | Scratch Remover Pen,Rosin Flux Pen |
| Packaging | Pen Form |
| Attributes | IPC J-STD-004B And Type ROM1,Leaded And Lead-free,Chiseled Tip For Precise Application,Fast,RoHS Compliant |
Our Rosin Flux Pen contains a rosin-based liquid flux with moderate activity. The flux is composed of pure Water White (WW) grade gum rosin in a unique solvent system, with highly effective activators. Post-soldering residues are non-conductive, non-corrosive, hydroscopic, and fungus resistant.
- Flux meets IPC J-STD-004B and type ROM1
- For both leaded and lead-free solders
- Chiseled tip allows precise application
- Fast wetting
| Business Type | Supplier, Retailer |
| Type | Flux Remover |
| Application | Dissolve And Remove Stubborn, Encrusted, Hard, Baked-on Fluxes And Residues After Soldering |
| Packaging | Aerosol Format |
| Special Features | Penetrates Quickly To Remove Non-ionic And Ionic Contaminants On Circuit Boards,Works Aggressively On Isolated And Hard-to-reach Areas For Spot Cleaning,RoHS Compliant,Quickly Dissolves Burnt-on Flux,Fast Dry Time,Zero Residue |
| Form | Liquid |
| Style | Spray |
| Cleaning Strength | Heavy Duty |

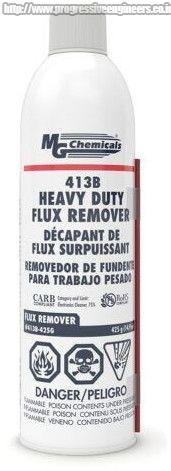

413B Heavy Duty Flux Remover is specially formulated to dissolve and remove the most stubborn, encrusted, hard, baked-on fluxes and residues left on parts after soldering. It penetrates quickly to remove non-ionic and ionic contaminants left on the non-component sides of circuit boards. It can also work aggressively on isolated and hard-to-reach areas that require spot cleaning. It is also available in aerosol format.
| Business Type | Supplier, Retailer |
| Material | Synthetic Latex |
| Color | Opaque Pink (uncured), Translucent Red (cured) |
| Application | Temporary Masking Of Circuit Areas And Contacts Against Solder |
| Feature | Withstands Wave Soldering,Non-Corrosive - Safe For Copper, Gold, Silver |
| Type | PCB Peelable Solder Mask |
| Compatibility | Suitable For Protecting Contacts, Gold Fingers, And Printed Circuit Card Edges |
This PCB peelable solder mask is a synthetic latex product for the temporary masking of circuit areas and contacts against solder, rosin and cleaning fluids. This PCB mask provides effective protection for contacts, gold fingers and printed circuit card edges, and can easily be peeled off once the
| Business Type | Supplier, Retailer |
| Type | Sn63/Pb37 Solder Paste |
| Material | High Purity, Non-recycled Tin And Lead Alloy Powder |
| Application | Surface Mount Applications |
| Feature | Long Shelf Life |
| Attributes | Sn63/Pb37,J-STD-004B,Non-corrosive,Non-conductive, |
| Solidity | Paste Type |
4860P – Sn63/Pb37 solder paste, also known as Sn63 solder paste or 63 37 solder paste, is a no-clean solder paste that is made from a blend of high purity, non-recycled tin and lead alloy powder combined with a no-clean flux to form a paste. It is designed for surface mount applications and provides high tack force and good wettability. The post-soldering residues are transparent, nonconductive, non-corrosive, and highly insulated. (“No-clean” means that residues are not harmful to assemblies.)
- Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
- Flux meets J-STD-004B
- Non-corrosive
- Non-conductive residue
- Halide-free
- Good wettability
- Type 3 (25-45 µm)
| Business Type | Supplier, Retailer |
| Application | Electronics Soldering |
| Form | Paste |
| Feature | Long Shelf Life |
| Type | Soldering Flux Paste |
| Material | Rosin, Thickener, High-grade Synthetically Refined Resin |
| Wettability | Excellent |
| RoHS Compliance | Https://mgchemicals.com/compliance/rohs/ |

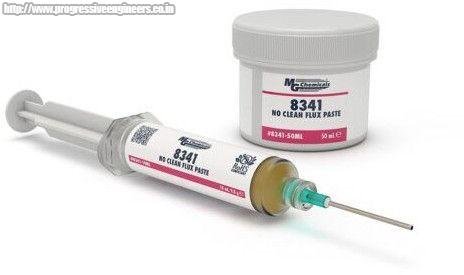

8341 is a no-clean soldering flux paste. It is designed for lead-free alloys, but also works well with conventional leaded solders. This tacky no-clean flux paste uses a mix of rosin, thickener, and high-grade synthetically refined resin. The flux provides fast and widespread wetting during soldering and leaves non-conductive and non-tacky residues.
- Soldering flux paste for electronics
- Excellent wettability
- Clear, non-conductive, and non-tacky residues
- Usable for both lead-free and leaded alloys
- Meets
