Electrically Conductive Grease

8463A is a highly conductive electrical lubricant that uses a silicone-based oil and specially formulated silver-coated aluminum flake. 8463A is a highly cost-effective alternative to silver-filled grease yet has superior electrical and thermal properties compared to carbon-based greases. This electrically conductive paste fills voids between adjoining parts, ensuring a continuous electrical path to enable the flow of current.

• Resistivity <0.2 Ω·cm
• Thermal conductivity 1.0 W/(m·K)
• Improves electrical connections between irregular and pitted surfaces
• Prevents arching, pitting, hotspots, and welds
• Inhibits corrosion
• Reduces mechanical wear
• Broad service temperature of -70 to 200 °C (-94 to 392 °F)
• Silicone-based oil

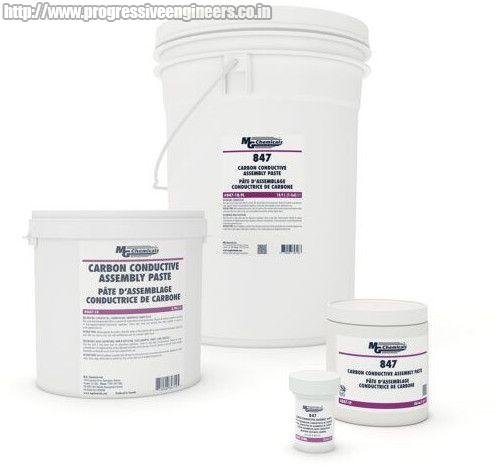

847 is a carbon-filled, silicone-free conductive paste. It improves electrical connections between non-moving parts in the same way a thermal paste improves thermal connections. It will not separate, bleed or migrate. This electrically conductive paste reduces contact resistance, repels moisture, inhibits corrosion, and prevents static buildup. It is thixotropic, and can be used as a gap filler to ensure grounded connections or revitalize corroded sockets.

• Resistivity of 23 Ω.cm
• Improves electrical connections between irregular, pitted or corroded surfaces
• Ensures electrical contact between loose or vibrating parts
• Prevents arching, pitting, hotspots and welds
• Inhibits corrosion
• Fills gaps
• Can be used on vertical surfaces
• Silicone-free

846 is an economical carbon conductive grease that provides lubrication for electrical contacts, reduces contact resistance, repels moisture, inhibits corrosion, and prevents static buildup.

• Resistivity of 63 Ω·cm
• Improves electrical connections between irregular, pitted or corroded surfaces
• Ensures electrical contact between loose or vibrating parts – best electrical switch lubricant
• Prevents arcing, pitting, hotspots and welds
• Reduces mechanical wear
• Inhibits corrosion
• Broad service temperature range of -50 to 200 °C (-58 to 392 °F)

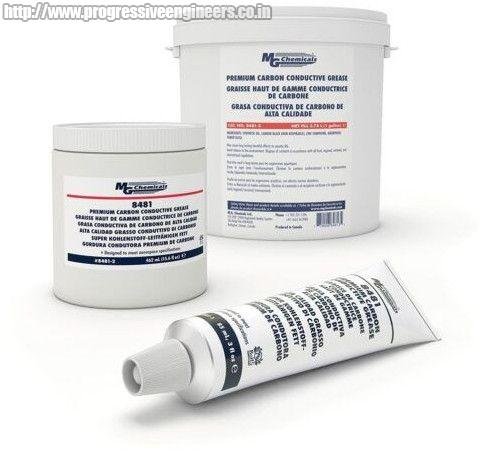

8481 is a premium, carbon-filled, silicone-free electrically conductive grease. It lubricates, reduces contact resistance, repels moisture, prevents static buildup, and is a powerful corrosion inhibitor. It is thermally stable and will not separate because of temperature cycling.

• An effective conductive lubricant with a resistivity of 160 Ω.cm
• Improves electrical connections between irregular and pitted surfaces
• Ensures electrical contact between loose or vibrating parts
• Prevents arcing, pitting, hotspots and welds
• Reduces mechanical wear
• Excellent thermal stability – does not separate because of temperature cycling
• Silicone-free
